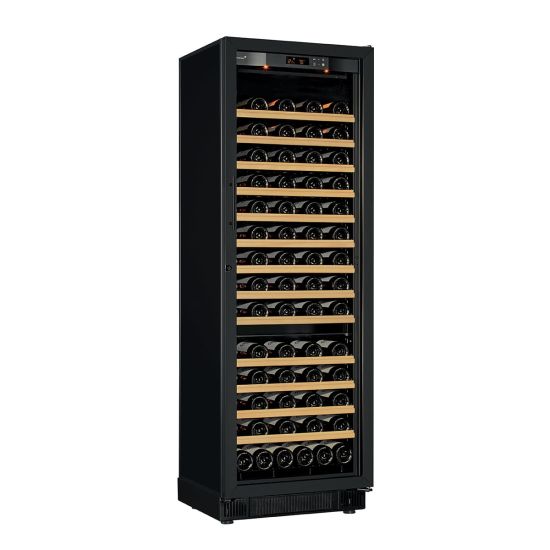

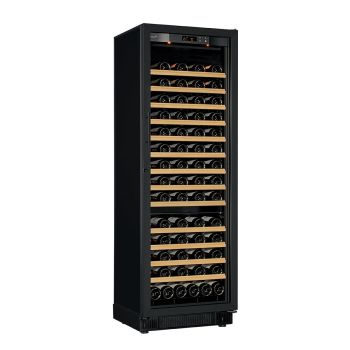

A tall single temperature cabinet for short or long term wine storage.
Originally designed to fit in standard 60x60cm kitchen unit spaces.
This machine needs to be ventilated at the rear as well as drawing air in through a grill at the front. This plinth/grill area must not be covered over in any way and must be cleaned regularly. You should fix it to the wall with the bracket supplied for increased stability when freestanding. See link below.
The steel bar handle protrudes 38mm.
Choose from a greater capacity two storage and two sliding shelves option or the far more popular 14 sliding shelves for greater ease of access. Change from the solid laminate door to a UV filtered frameless glass door or a technical door to mount your own panel. Only manufactured with black laminate side panels.
This cabinet height can be adjusted to between 1777/1793 mm (for levelling purposes) or 1815mm with technical door and the cabinet depth differs depending on the type of door selected. The cabinet depth is 572 mm with a solid door and 566 mm with a glass door, the bracket takes the unit to 600mm deep.
H1777/1793 x W594 x D566 up to D572 mm.
Ventilation when building in a cabinet (except Compact 059)
Fitting a technical door (PDF)
Fitting a wall bracket (PDF)
